UPS

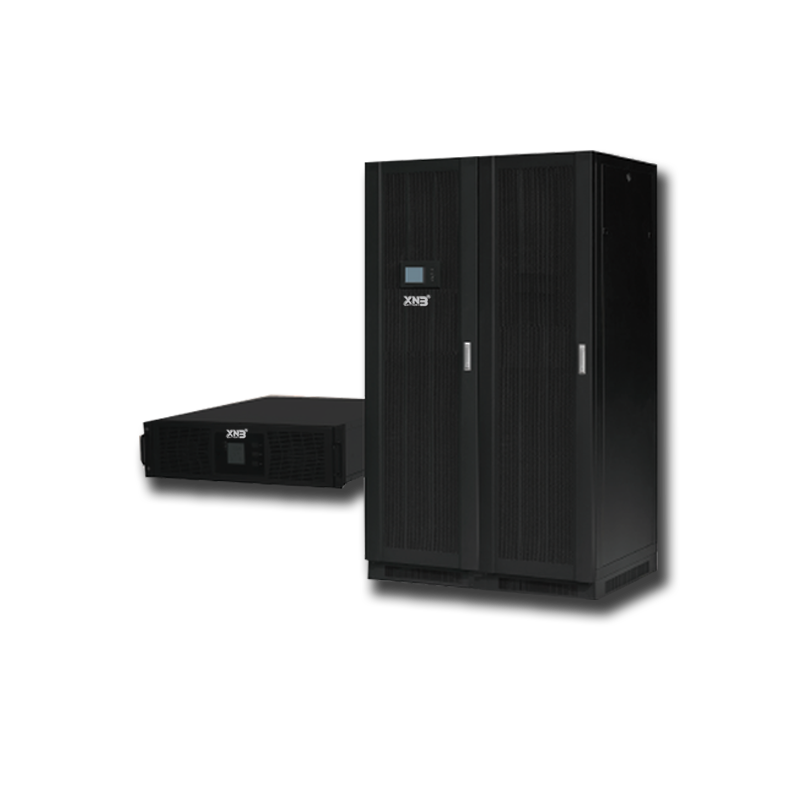

HM33 high frequeny modular series

40KVA-600KVA
3/3 phase
PF0.9
High frequency
double conversion
Online

FEATURE
  • Module structure, UPS capacity can be changed based on loads
  • N+X redundancy
  • Efficiency of UPS is more than 96%, environmental protection
  • Friendly interface design of LCD
  • EPO funtion
  • Advanced battery managemen
  • 3U frame, rack-mount
  • Microprocessor control, self-check, battery check by itself
  • Online static bypass, strong protection for overload and UPS fault
  • RS232 & SNIMP for optional, to provide remote control management
  • Iteligent temperature controlled fan, long life and low noise
  • Power module 40K, 50K, 60K


SPECIFICATION


                                                                           INPUT

                                   Input Voltage

                                                              138VAC-485VAC

Input Frequency

40Hz-70Hz

Slow Start
60s
Input Total Harmonic Distortion THD
≤3%

INPUT BYPASS

Input PF

≥0.999

Input Voltage380VAC±10%
Input Frequency50Hz/60Hz 0.1 Hz
BATTERY VOLTAGE
Rated DC Voltage380V/400V/415V
Charging Voltage Stability
±1%

DC OUTPUT

UPS PF

0.8

Output Voltage

380V/400V/415V
Output Frequency
50Hz/60Hz±0.1Hz

Time for Output Voltage

20ms (load from 0-100%)
Overload

100% 60mi

125% 10minn

150% 60s

1000% 1

Transfer Time0ms
Crest Factor≥3:1
Distortion THD≤3%
Efficiency
≥96%

ENVIRONMENT

Temperature

-5°C-40°C

Elevation Allowed

≤1500 Meters

Humidity≤95% (no condensing)
IP ClassIP30
CoolingAir
Safety StandardEN60950
Electromagnetic Compatibility CharacteristicsEN50091-2CLASSB
Noise≤50dB

INTEGRATED POWER DISTRIBUTION SYSTEM

Circuit Breaker

Optional

DC Isolation Switch Fuse

Optional

Lighting ProtectionOptional
PDU Units
Optional
OTHERS
Dimension for UPS600*850*2000
1200*850*2000

Communication

RS232、 RS422、 RS485、 TCP/IP

SNMPStandard
StructureModule Parallel, Can Replace Online
DisplayLCD/LED
Emergency Switch
Optional

MODULE MODEL

HM33 300KVAHM33 400KVAHM33 500KVAHM33 600KVA
Module Capacity

40KW, 50KW, 60KW

DC Input±192VDC
Input & Output
3/3
Dimension for Module
19°(W), 3U(H),520MM(D)
Weight
17KG20KG





HM33 high frequeny modular series
40KVA-600KVA
3/3 phase
PF0.9
High frequency
double conversion
Online
