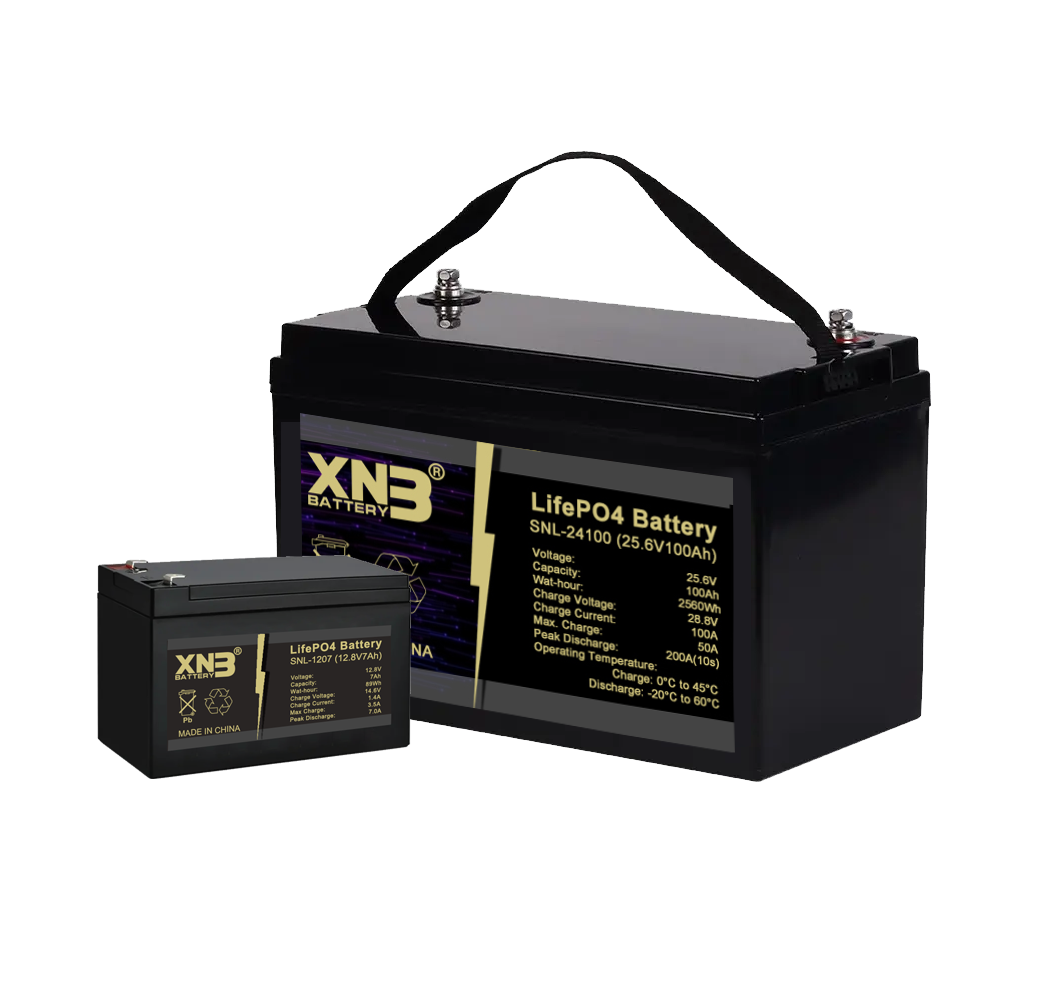

LifePO4 Battery

The lead-acid replacement lithium battery product is a high-performance rechargeable LifePO4 battery with an integrated built-in battery management system. It can be used in solar systems, offering a longer cycle life and reduced maintenance costs.

Product Detail

FEATURE	APPLICATION
Higher capacity Wider operating temperature range Extremely low self-discharge Lighter weight Longer cycle life	UPS Communication system Solar/Wind energy system Electric bicycle Grid energy storage

SPECIFICATION

MODEL	SNL-1207	SNL-1209	SNL-1212	SNL-1218	SNL-1220	SNL-1226
Capacity	7Ah	9Ah	12Ah	18Ah	20Ah	26Ah
Nominal Voltage	12.8V
Nominal Energy	89Wh	115Wh	153Wh	230Wh	256Wh	332Wh
Internal Resistance	≤80mΩ	≤80mΩ	≤30mΩ	≤25mΩ	≤25mΩ	≤25mΩ
Efficiency	99%
Cycle Life	≥4000 times 0.5C A 80% DOD
Terminal	F2			M6
Dimensions(mm)	1516594		1519694	18177165		175166124
Weight(kg)	0.95	1.05	1.45	2.23	2.0	3.10
Max Charge Voltage	14.6V
Standard Charge Current	1.4A	1.8A	2.4A	3.6A	4.0A	5.2A
Max Charge Current	3.5A	4.5A	6.0A	9.0A	10.0A	13.0A
Discharge Voltage	10.0V
Standard Discharge Current	3.5A	4.5A	6.0A	9.0A	10.0A	13.0A
Max Discharge Current	7.0A	9.0A	12.0A	18.0A	20.0A	26.0A
Protection Grade	IP54

MODEL	SNL-1250	SNL-12100	SNL-12150	SNL-12200	SNL-2450	SNL-24100
Capacity	50Ah	100Ah	150Ah	200Ah	50Ah	100Ah
Nominal Voltage	12.8V				25.6V
Nominal Energy	640Wh	1280Wh	1920Wh	2560Wh	1280Wh	2560Wh
Internal Resistance	≤20mΩ	≤15m
Efficiency	99%
Cycle Life	≥4000 times 0.5C A 80% DOD
Terminal	M6	M8
Dimensions(mm)	227143212	330170220	359174218	521241222	359174218	521241222
Weight(kg)	7.0	11.7	19.0	22.5	13.7	22.0
Max Charge Voltage	14.6V				29.2V
Standard Charge Current	10A	25A	30A	60A	10A	25A
Max Charge Current	25A	50A	75A	100A	25A	50A
Discharge Voltage	10.0V			20V
Standard Discharge Current	25A	50A		60A	25A	50A
Max Discharge Current	50A	100A			50A	100A
Protection Grade	IP54
