UPS

FEATURE
  • Module structure, UPS capacity can be changed based on loads
  • N+X redundancy
  • Efficiency of UPS is more than 96%, environmental protection
  • Friendly interface design of LCD
  • EPO funtion
  • Advanced battery management
  • 3U frame, rack-mount
  • Microprocessor control, self-check, battery check by itself
  • Online static bypass, strong protection for overload and UPS fault
  • RS232 & SNIMP for optional, to provide remote control management
  • Iteligent temperature controlled fan, long life and low noise
  • Power module 40K, 50K, 60K


SPECIFICATION


                          MODEL

              NPC1006

              NPC1010                      NPC1015                NPC8015

System recommended load power

3.5KW

7KW10.5KW3.5KW

Recommended input air-switch configuration

Single-phase

Single-phaseThree-phaseSingle-phase
100A125A80A100A

Recommended input cable configuration

Single-phase

Single-phaseThree-phaseSingle-phase
16mm2
25mm210mm216mm2

PRECISION AIR CONDITIONER

Air conditioning form

Split-type air conditioner

Top rack air conditioner
Cooling capacity (KW)3.5KW5KW9KW3.5KW
Air volume750m3/h1100m3/h1950m3/h750m3/h
Energy efficiency ratio3.7KW
Using environment
-45-50°C; 0%-90%RH

Indoor unit dimensions(W*D*H)mm

440x750x220(5U)

440X750X440600X1100X350

Outdoor unit dimensions(W*D*H)mm

300x850x575

450x1200x700No outdoor unit
Input power220V/50Hz
Air flow
Upflow/Downflow
Downflow



UPS

Wiring

  Single phase in and single phase out

  Three phase in and single phase out    Single phase in and single phase out

Capacity

6KVA

10KVA15KVA6KVA
Input voltage range
110VAC-300VAC176VAC-520VAC110VAC-300VAC
Power factor0.8
Conversion time
0ms
Waveform distortionLinear load≤2%; Non-liner load≤3%
Panel displayLoad size, battery capacity, utility mode, battery mode, bypass mode, fault mode
Communication interfaceSupport RS232, RS485, SNMP card
WxDxH (mm)2U3U6U2U
Net weight (kg)
12164512

BATTERY

Standard battery

12V/7Ah
Backup timeStandard≥10min (long delay can be external battery)
Battery pack size2U
POWER DISTRIBUTION MODULE
Function
Integrated input distribution, UPS output distribution

Way of communication

RS485

Specification

3U

6U3U
HMI
Temperature and humidity detection port
Support
Way of communication
Support RS232, RS485 and TCP/IP protocol
Display screen
10 inch touch color screen



                                                                           PDU

Input Current

Single phase 16A

Output bits

12-bit 10A Universal socket
Installation method
Vertical installation
                   Communication display                                                Digital display, RS485 communication
Configuration type
One pcs per cabinet
KVM
Visual area17 inches
ConfigurationOptional
CABINET
Function
Installation, Insulation, Built-in hot and cold channels, support automatic bounce door function
Single cabinet size (WxDxH)mm600x1100x2000
Cabinet configurationSingle cabinetTwo cabinetsThree cabinetsSingle cabinet
Load (kg)
1500

ENVIRONMENTAL MONITORING

Temperature and humidity

Support
LeakageSupport
SmokeSupport
Fire module (optional)
1U height (1 set per cabinet)

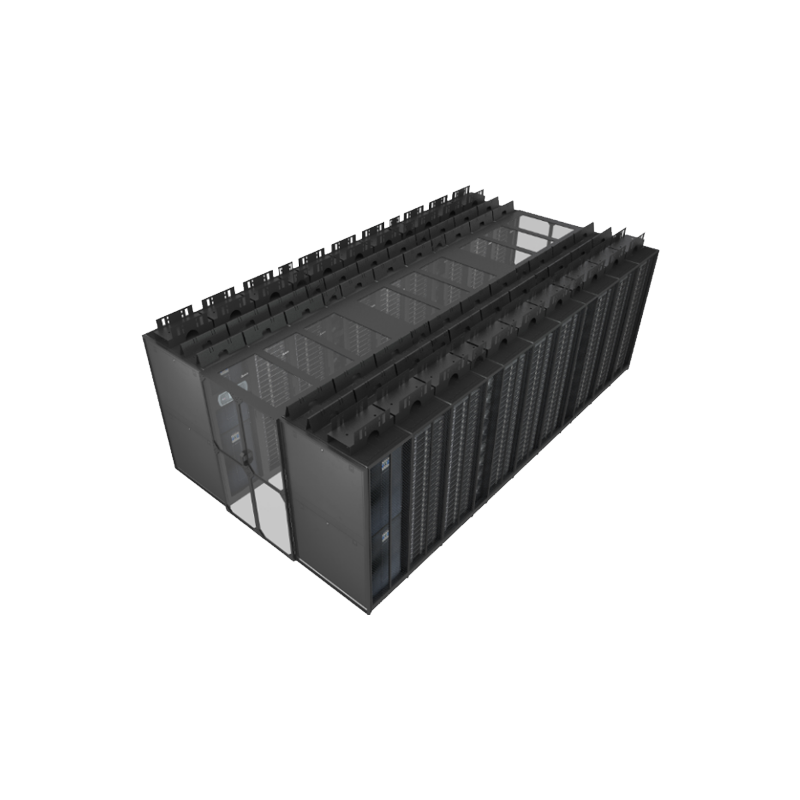

Micro DC
