Products

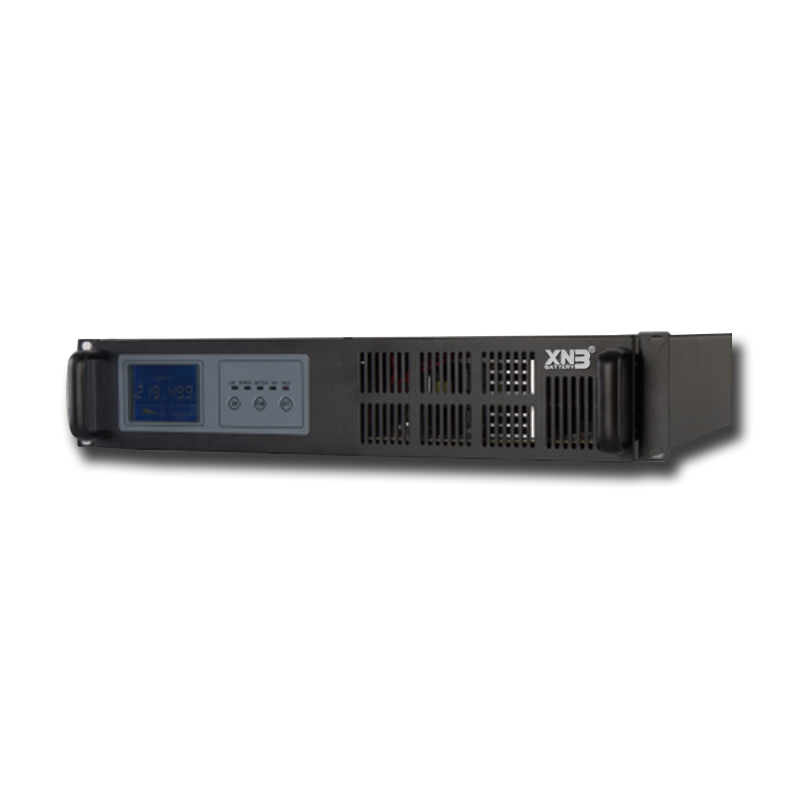

HR1-3KVA rack mount series

1KVA-3KVA
1/1 phase
Rack mount type
PF0.9
High frequency
double conversion
Online

FEATURE
  • Standard 19" rack mount type
  • High frequency and double conversion onlinetechnology
  • Fully digitized microprocessor control
  • Wide input voltage range
  • LCD display
  • UPS start up without battery (optional)
  • Cold start
  • Advanced battery management
  • Automatic battery charging in UPS off mode
  • Lightning and surge protection (optional)
  • Short circuit and overload protection
  • Fan speed adjusted by load automatically
  • Network/fax/modem surge protection(optional)
  • Optional extension battery pack
  • Battery vltage display
  • Load capacity display
  • EMIRFI noise flter
  • Smart RS232 communication with monitoring software
  • Optional SNMP card slot
  • Input L and N reversed alarm function


SPECIFACATION


                           MODEL

                    HR1K

                    HR2K                                      HR3K

Capacity

1000VA

2000VA3000VA

INPUT

Voltage

120-295V

Frequency

45-65Hz Auto Sensing

Input Power Factor
>98%

OUTPUT

Voltage

220VAC±1%

Frequency50/60Hz±0.05%(battery mode)
Distortion THDNon-linear Load THD<5%, Linear Load THD<3%
Overload<105% 10min, 105%-130% 1min,>130% 200ms
Crest Factor
>3.1

Power Factor

0.8/0.9(optional)

Efficiency

>99%

BATTERY

Type

Valve Controlled Sealed Lead-acid Battery

DC Voltage

24VDC/36VDC

72VDC72VDC/96VDC
Quantity for Battery

12V/7Ah*2pcs/7Ah*3pcs

12V/7Ah*6pcs12V/7Ah*2pcs/7Ah*8pcs

Charging current

1A/2A(4A,6A)

1A/2A(4A,6A)
1A/2A(4A,6A)

TRANSFER TIME

AC Fault

0ms

UPS Fault

<4ms

PROTECTION

Short Circuit

Shut Off Inverter and Bypass Output

Over Temperatrue

Transfer to Bypass Output Automaticly

DISPLAY
LCDInput Voltage、Output Voltage、Current、Frequency、Battery Voltage& Charging Current、Fault、Alarm

LED

UPS Status

ALARM

Battery Low Voltage

Alarm Each Second

UPS OverloadAlarm Continuely
UPS Fault
Alarm Continuely

COMMUNICATION INTERFACE

RS232 (SNMP&USB Optional)

ENVIRONMENT

Temperature0°C-40°C
Humidity≤95%
Noise(within 1 meter)
<45dB<50dB
PHYSICAL
Weight(Net Weight)14.5Kg/7.8Kg30.5Kg/9.6Kg30.9Kg/10Kg
Dimension W*D*H(mm for UPS)
437*468*88(2U)
