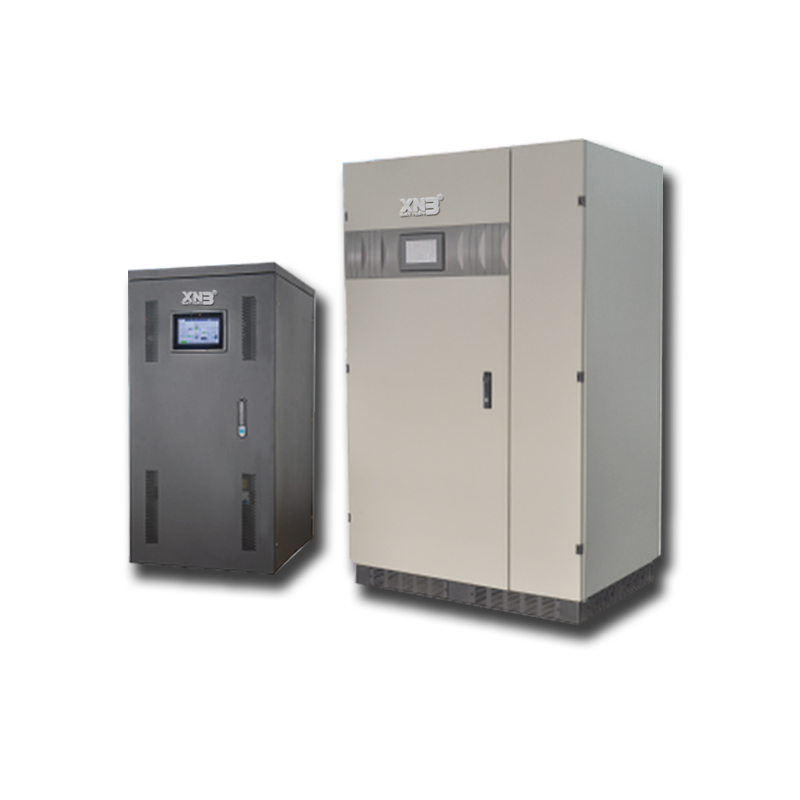

LX33 transformar based series
10KVA-200KVA
3/3 phase
PF0.8
Transformar based
double conversion
online
| FEATURE | |
|
|
SPECIFICATION
MODEL | LX33 10K | LX33 15K | LX33 20K | LX33 30K | LX33 40K | LX33 60K | LX33 80K | LX33 100K | LX33 120K | LX33 160K | LX33 200K | |
Capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 160KVA | 200KVA | |
INPUT | ||||||||||||
Voltage | 380VAC±20% | |||||||||||
Frequency | 50Hz±5%/60Hz±5% Auto Sensing | |||||||||||
OUTPUT | ||||||||||||
Voltage | 220-244VAC(can be set) | |||||||||||
| Frequency | 50±0.05%/60Hz±0.05%(free running) | |||||||||||
| Dynamic Response | Full Load±5% | |||||||||||
| Wave Form | Sine Wave | |||||||||||
| Crest Factor | 3.1 | |||||||||||
Efficiency | >92% | >92% | >93% | |||||||||
Rated Output PF | 0.8 | |||||||||||
| Distortion THD | Non Linear Load THD<5%; Linear Load THD<3% | |||||||||||
| Overload | Load<110% after 5h Transfer to Bypass and Recover Automaticly Load 110%-125% after 10min Transfer to Bypass and Recover Automaticly Load 125%-150% after 1min Transfer to Bypass and Recover Automaticly | |||||||||||
BATTERY | ||||||||||||
Type | Valve Controlled Sealed Lead-acid Battery | |||||||||||
DC Voltage | 384VDC | 432VDC | 480VDC | |||||||||
Quantity for Standard Backup | 12V*32pcs | 17V/7Ah*36pcs | 12V/7Ah*40pcs | |||||||||
TRANSFER TIME | ||||||||||||
Bypass Inverter | 0ms | |||||||||||
Inverter to bypass | <2ms | |||||||||||
PROTECTION | ||||||||||||
Short Circuit | Shut Off Inverter and Bypass Output at The Same Time | |||||||||||
Over Temperatrue | >85°C Transfer to Bypass Output Automaticly | |||||||||||
| EMI Filter | EN62040-2A Class | |||||||||||
| Battery | Circuit Breaker | |||||||||||
| DISPLAY | ||||||||||||
| LCD | Input Voltage、Output Voltage、Current、Frequency、Battery Voltage、Load、UPS Status、Temperature etc. | |||||||||||
| LED | Input/Bypass/Inverter/Battery/ Overload/ Fault | |||||||||||
ALARM | ||||||||||||
| Battery Low Voltage | Continuely Alarm Every Second Until UPS Shut Down, Battery LED Flash LED Flash Every 2 Seconds | |||||||||||
| AC Fault | Alarm Every 4 Seconds | |||||||||||
| UPS Overload | Continuely Alarm | |||||||||||
| UPS Fault | Continuely Alarm | |||||||||||
COMMUNICATION INTERFACE | ||||||||||||
| RS232: Dry Contact | ||||||||||||
ENVIRONMENT | ||||||||||||
| Temperature | 0°C-40°C | |||||||||||
| Humidity | ≤95%(no condensing) | |||||||||||
| Noise(at 1 meter) | <52dB | <60dB | <62dB | |||||||||
| PHYSICAL | ||||||||||||
| Weight(Net Weight) | 210Kg | 220Kg | 230Kg | 282Kg | 351Kg | 497kg | 556Kg | 900Kg | 1020Kg | 1220Kg | 1550Kg | |
Dimension W*D*H (mm for UPS) | 555*825*1200 | 800*740*1400 | 1070*745*1400 | 1420*860*1600 | ||||||||
